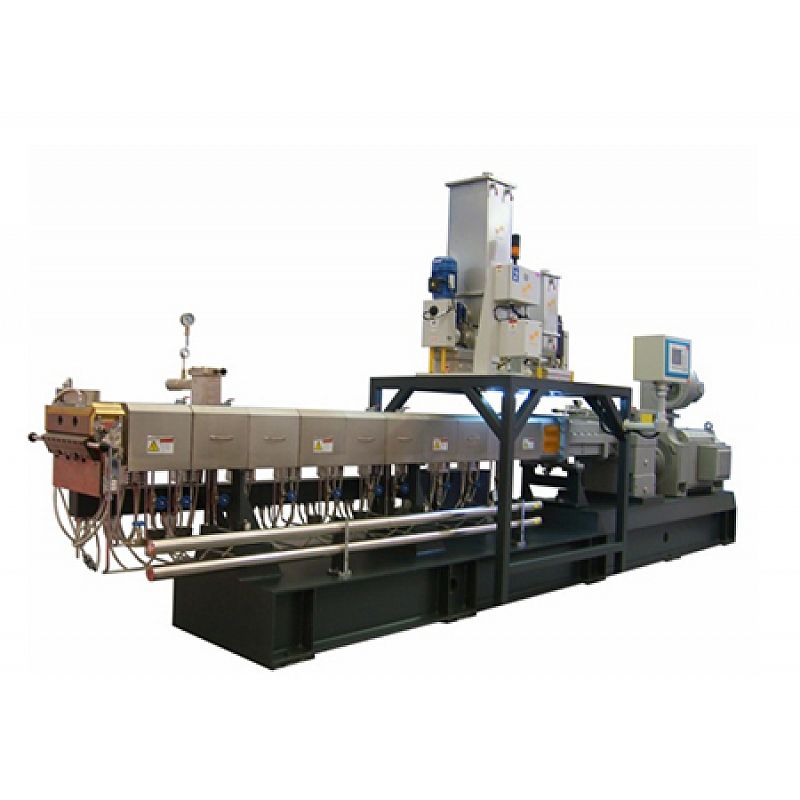

TDS-75B twin screw extruder

Item No.: TDS-75B

Production capacity: 400-550kg/hr(depends on different product formulation)


Product work flow scheme:

A. Task purpose: according to industrial art formula requirements: (1) make an accurate measurement feeding after premixing material resin and additives to make sure the accuracy of formula and stability of product quality; (2)complete muti component mix in twin screw extruder, continually compound and disperse until the material is stabilization to extruding pelletizing.

B. Feeding method: material resin and additives feeding; adopt twin screw metering feeder, feeding from the above of 1st barrel;



Main technical parameter:

1. Main extruder type:                TDS-75B/600rpm-132kw-44:1;

2. Screw diameter:                       Ф71mm;

3. Main extruder L/D:                     44:1;

4.Screw,barrel material:  excellent nitriding steel(38CrMoAlA),through nitriding process;

5. Main motor power:                  132kw(AC);

6.Main screw rotating speed :  60~600rpm;

7. Barrel heating power:             ~60.4kw;

8. Total install power:                  ~210kw;
