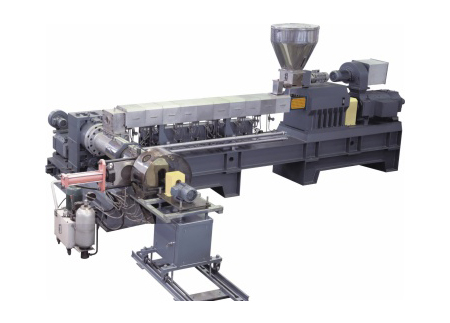

TDS/TDD Series Two Stage Extruders

Technical Characteristics

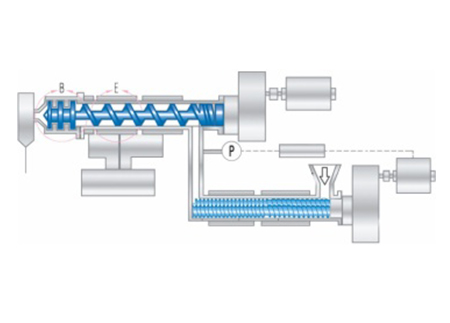

◆ Stage1 could be TDS co-rotating twin screw extruder,TDY counter-rotating twin screw extruder or TDW recipricating single screw extruder.stage2 is lower-speed single screw extruder.To combine both extruders together and completely used for heat-sensitive materials pelletizing,devolatilization operation and direct forming extrusin task.

◆ Increasing the operation variables and realizing process because of two-stage machine to meet excellent efficiency and output inquiry.

Twin screw extruders excel in high effective plastizing,compounding and diepersion,besides these,the partial over-shearing and over-heating could besolved effectively because of more performance without die back-pressure return.single screw extruders are advanced in high-pressure extrusion with lower speed and lower temperature.

TDS/TDD Technical Data

Type		D（mm）	L/D	RPM (r/min)	P (kw)	Q (kg/h)
TDS52-120	TDS-52	51.4	24~48	500	37/45	100~300
TDS52-120	TDD-120	120	7~20	85	30/37	100~300
TDS65-150	TDS-65	62.4	24~48	500	55/75	200~500
TDS65-150	TDD-150	120	7~20	85	37/45	200~500
TDS75-180	TDS-75	71	24~48	500	90/110	400~800
TDS75-180	TDD-180	150	7~20	85	45/55	400~800
TDS95-200	TDS-95	93	24~48	400	200/250	700~1500
TDS95-200	TDD-200	180	7~20	85	55/75	700~1500

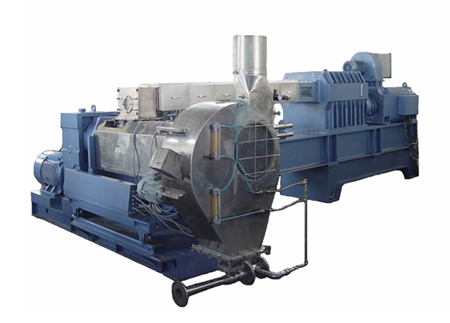

TDS65-150 two stage water-ring pelletizing line

TDS65-150

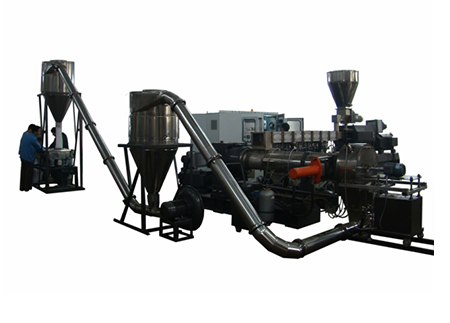

TDS75-180 two stage air-cooling pelletizing line

TDS75-180

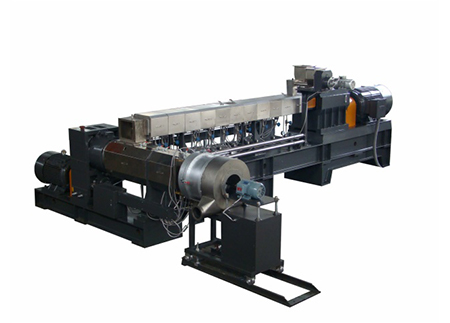

TDS95-200 two stage pelletizing line

TDS95-200
